Strong Screw Fixing Mounts with curved design : KR7G5

KR, Article number: 151-00548

Features

• Curved design for additional cable support

• Simple to install with a screw or bolt

• Excellent security, particularly in areas of high vibration

• Mounts are available in various sizes and materials

Certifications & Approvals



Application

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm b.

More products in this product group



Colour	Natural (NA)
Fixation Method	Screw Mounting and Rivet
Mounting Screw Type	M4
Pack Cont.	100pcs.
Package Quantity per	bag
PART DESCRIPTION	KR7G5-PA66-NA
Product Family	KR
Product Group	Strong Screw Fixing Mounts with curved design
Strap Thickness max.	2.4mm

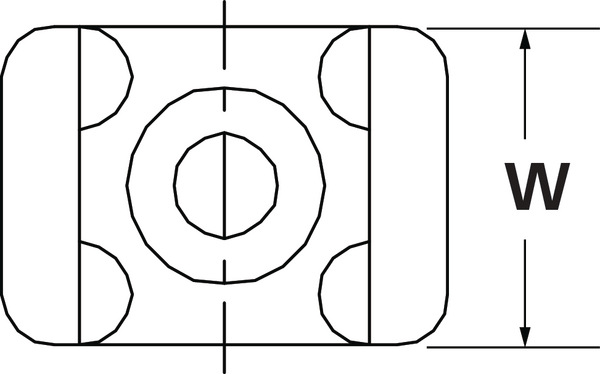

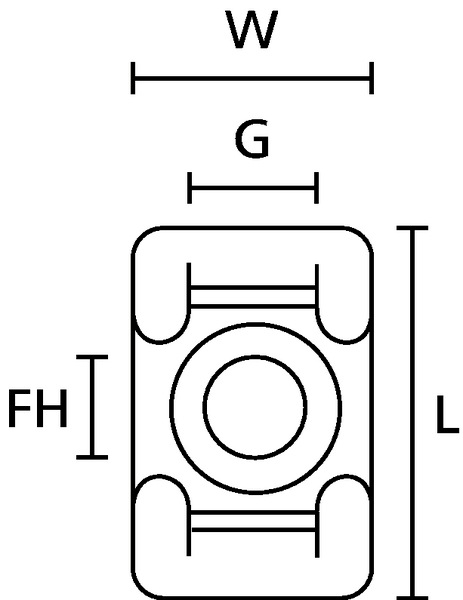

Product Dimensions

for Hole ? (FH)	4.5 mm
Height (H)	12.1mm
Length (L)	24.8mm
Strap Width max. (G)	8.3mm
Width (W)	14.3mm

Material and Specifications

Flammability	UL 94 V2
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C
Specifications
Specifications	ANSI/UL 1565, ANSI/UL 62275
UL Recognized (US and Canada)	Yes
UL-File Number	E64962

Logistics and Packaging

More Inbation

ETIM 6.0	EC000449
ETIM 7.0 Key	EC000449
