Strong Screw Fixing Mounts with curved design : KR10G5

KR, Article number: 151-00544

Features

• Curved design for additional cable support

• Simple to install with a screw or bolt

• Excellent security, particularly in areas of high vibration

• Mounts are available in various sizes and materials

• Application

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm b.

Base Data

Colour	Natural (NA)
Fixation Method	Screw Mounting and Rivet
Mounting Screw Type	M4
Pack Cont.	50pcs.
Package Quantity per	bag
PART DESCRIPTION	KR10G5-PA66-NA
Product Family	KR
Product Group	Strong Screw Fixing Mounts with curved design
Strap Thickness max.	3.5

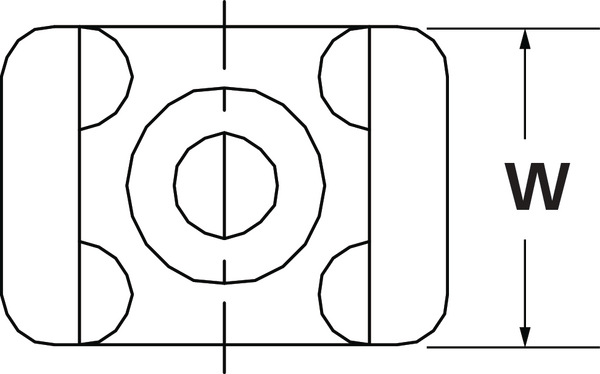

Product Dimensions

?
for Hole ? (FH)	4.5 mm
Height (H)	16mm
Length (L)	40.5mm
Strap Width max. (G)	13.0mm
Width (W)	18.1mm

Material and Specifications

Flammability	UL 94 V2
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C
Specifications

Logistics and Packaging

More Inbation

ETIM 6.0	EC000449
ETIM 7.0 Key	EC000449
